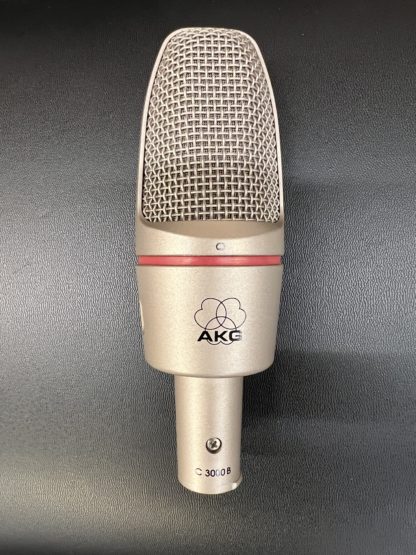

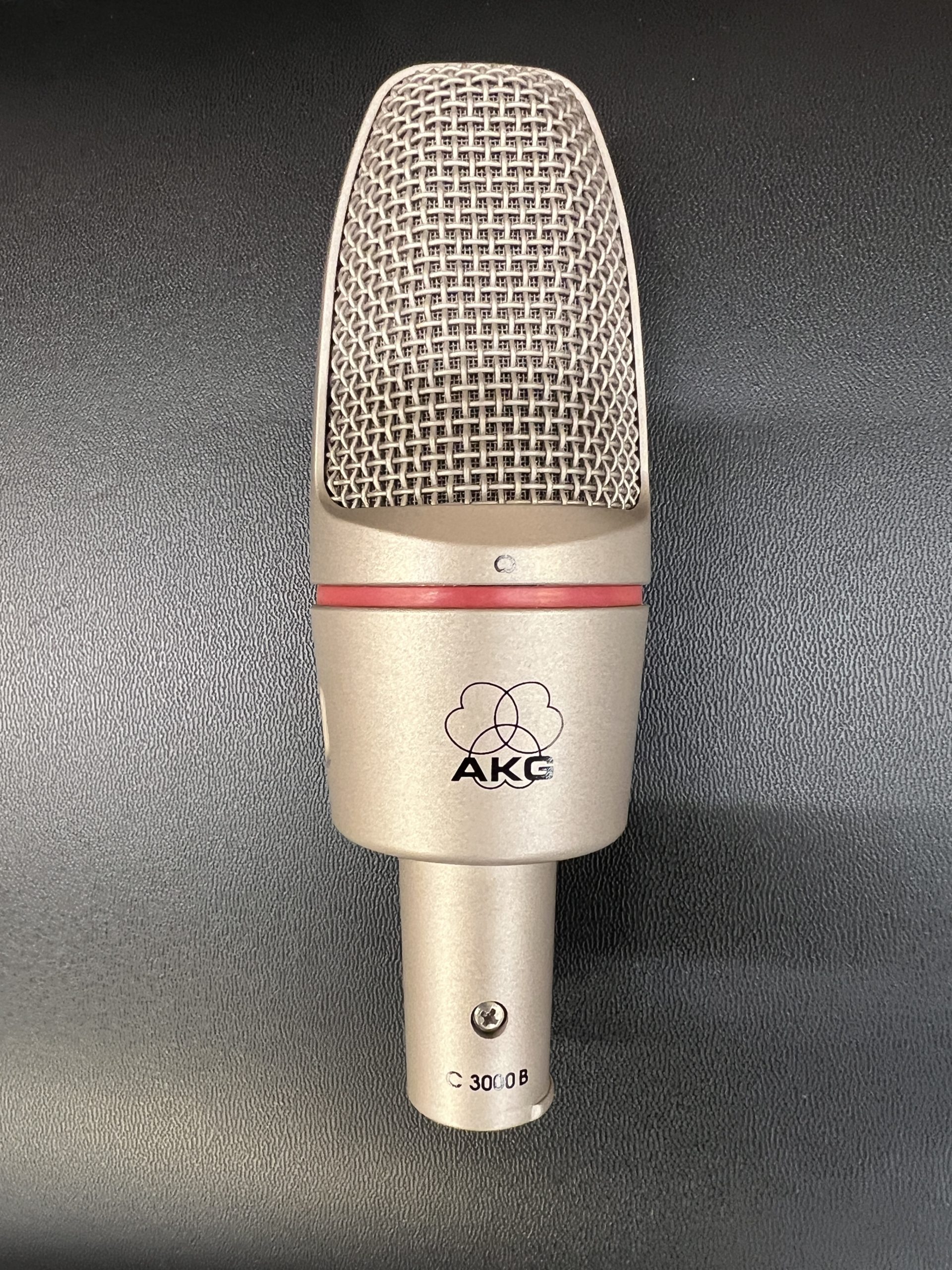

Käytetty AKG C3000B mikrofoni

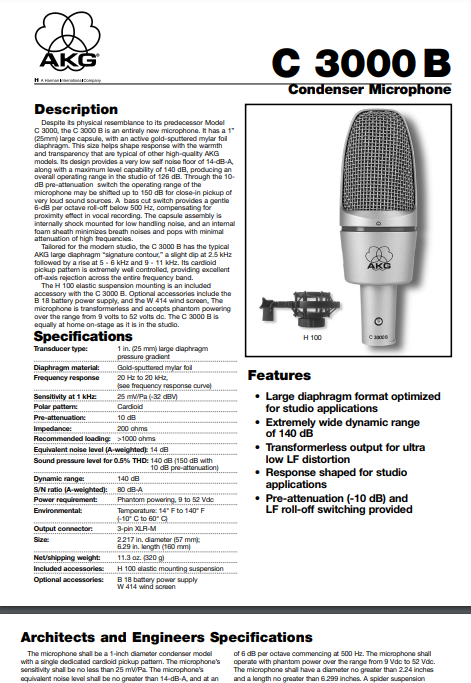

Transducer type: 1 in. (25 mm) large diaphragm
pressure gradient
Diaphragm material: Gold-sputtered mylar foil
Frequency response 20 Hz to 20 kHz,

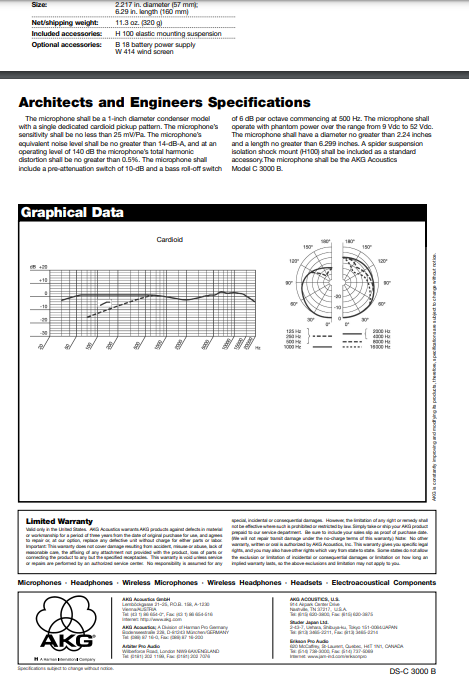

(see frequency response curve)
Sensitivity at 1 kHz: 25 mV/Pa (-32 dBV)
Polar pattern: Cardioid
Pre-attenuation: 10 dB
Impedance: 200 ohms
Recommended loading: >1000 ohms
Equivalent noise level (A-weighted): 14 dB
Sound pressure level for 0.5% THD: 140 dB (150 dB with
10 dB pre-attenuation)
Dynamic range: 140 dB
S/N ratio (A-weighted): 80 dB-A
Power requirement: Phantom powering, 9 to 52 Vdc
Environmental: Temperature: 14° F to 140° F
(-10° C to 60° C)
Output connector: 3-pin XLR-M
Size: 2.217 in. diameter (57 mm);
6.29 in. length (160 mm)
Net/shipping weight: 11.3 oz. (320 g)

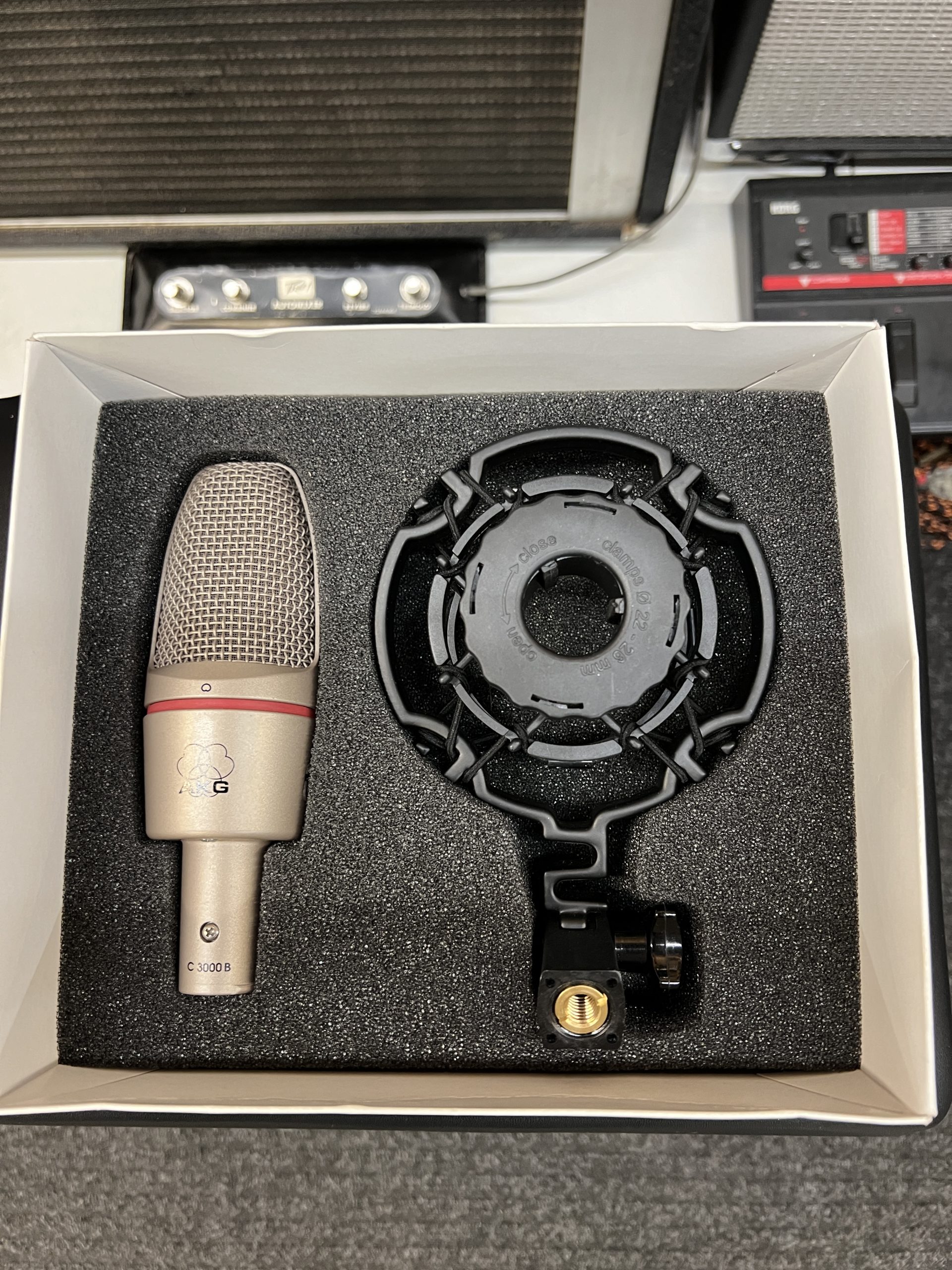

Included accessories: H 100 elastic mounting suspension
Optional accessories: B 18 battery power supply
W 414 wind screen
