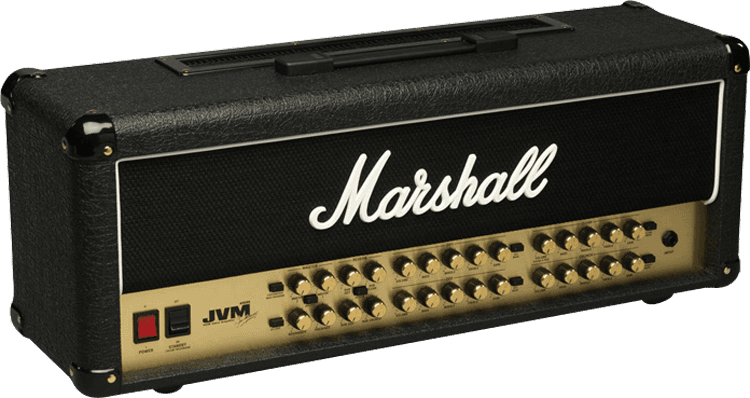

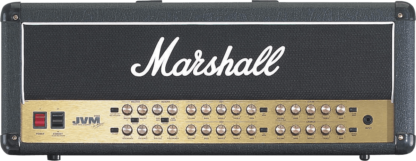

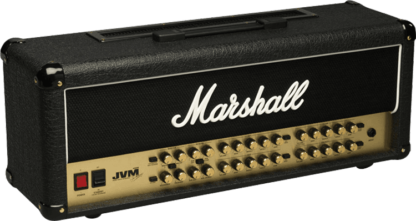

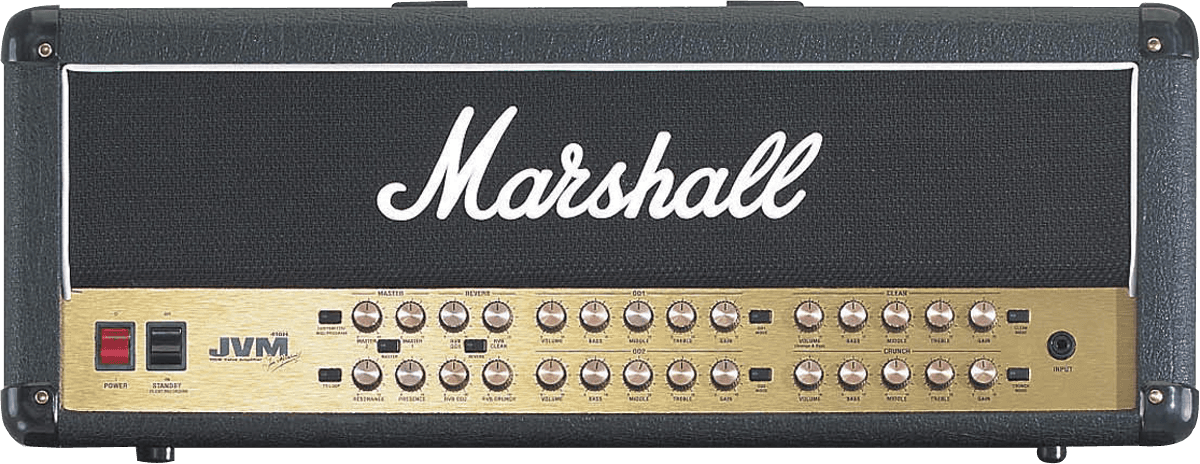

Prepare to craft and innovate in rehearsal to shape the ideal stage sound for you with the 100W JVM410H. There are four independent channels, two master volumes and digital reverb so you can transform your sound palette and generate revolutionary sound combinations. The six-channel footswitch can store your favourite combinations and allows you to take your sound wherever you go, ready to perform with any JVM.
MAGNIFY YOUR SOUND
The two channels, clean/crunch and overdrive, have three modes and each of these channels have reverb, presence and resonance controls.
MIDI CAPABILITY
You can control all the features using any MIDI equipment at any time.
ON THE ROAD
By using a six-way footswitch, you can programme in your favourite sound combinations and play them with ease through any JVM anywhere in the world.
EXPLOSIVE SOLOS
It has two master volumes so you can create those invigorating solo moments.
MIX IT UP
This loop can be mixed to determine to strength of your effect and it allows you to mix in any external affect without damaging signal quality.
Common specification:
– 3 modes per channel
– Independent 3-band EQ (bass, middle, treble) by channel
– Independent volume, gain and reverb controls by channel
– 2 Master Volumes
– “silent recording” output with speaker emulation at XLR format.
– Hoop effects in series and parallel
– MIDI
Channels: 4 (Multi)
Output wattage: 100W

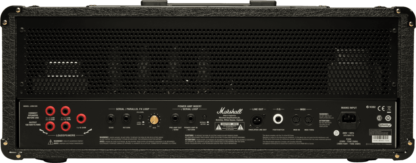

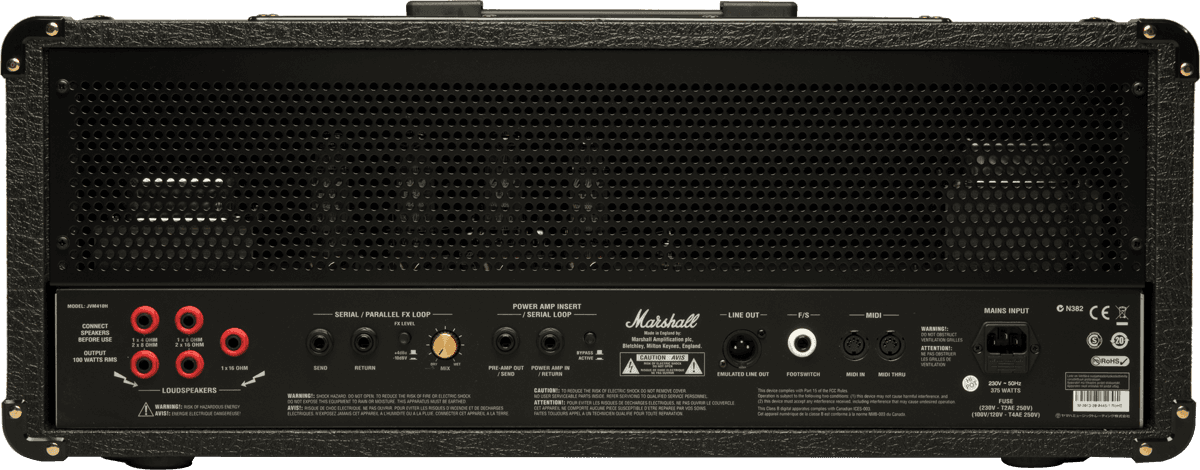

Outputs: Speaker outputs: 5 x 1/4″ jack sockets (16Ω load / 8Ω load / 4Ω load), Emulated Line Out (XLR), MIDI Thru
Inputs: 1 x 1/4″ jack instrument input, MIDI In, Footswitch

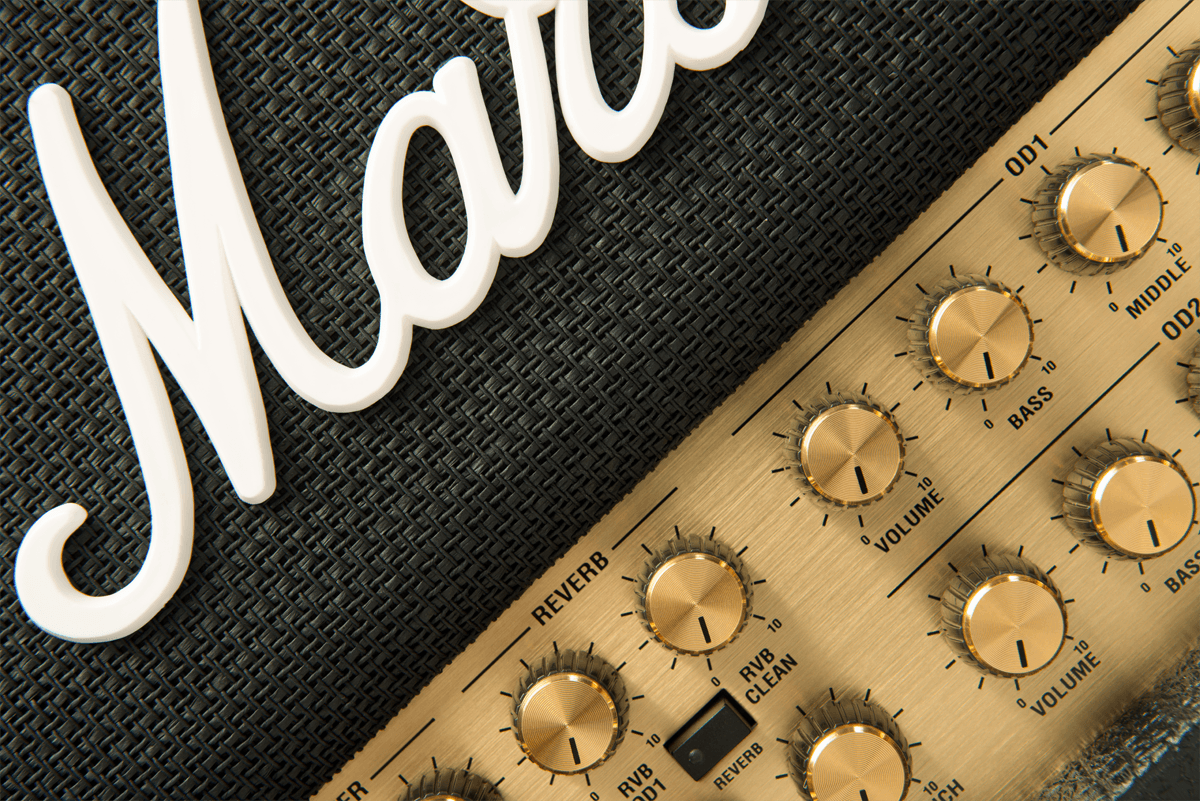

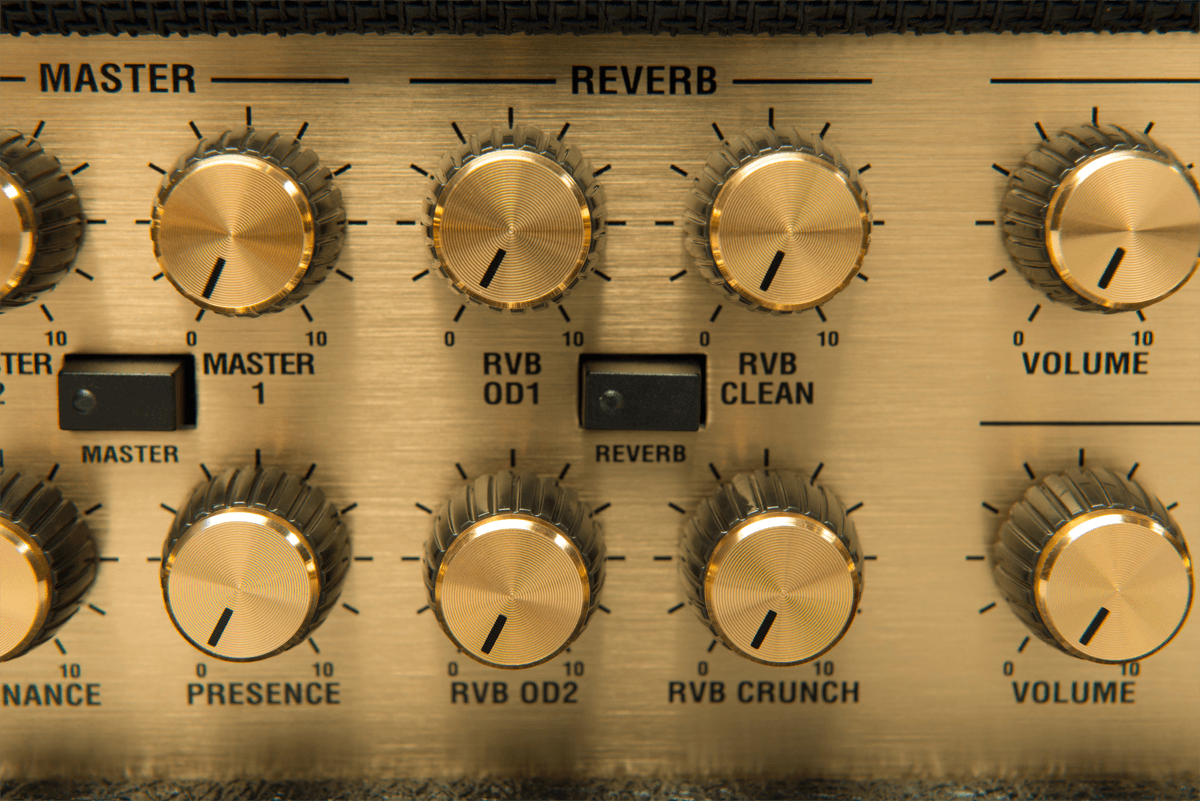

Controls: Channel and mode select (button), gain (per channel), treble (per channel), middle (per channel), bass (per channel), volume (per channel), reverb (per channel), presence, resonance, master volume select, master volume (switchable for each channel)
Effects: Digital reverb
Effects loop: 2, 1 x series parallel, 1 x series
Preamp valves: 4 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves: 4 X EL34
Cable: Detachable power cable included
Footswitch: PEDL-91005 included.
Weight: 22 kg
Width: 740 mm
Height: 310 mm
Depth: 215 mm
