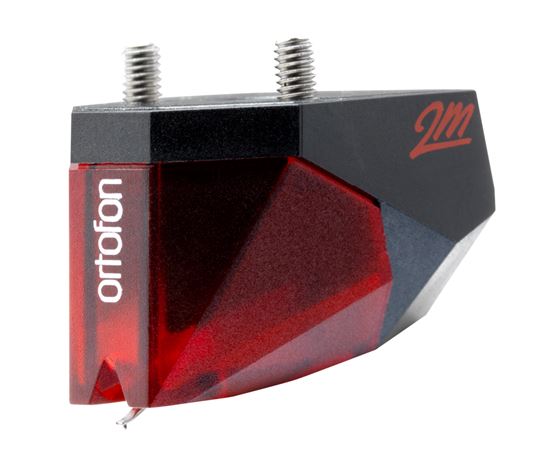

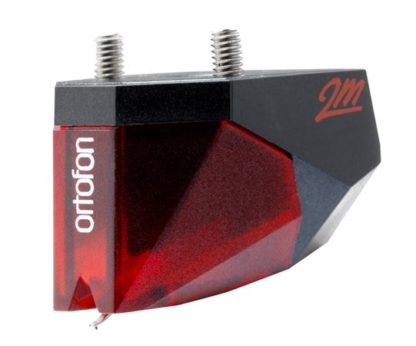

Ortofon 2M RED äänirasia

110,00

1 varastossa

Tuotetunnus (SKU): 2MRed Osasto:
  • Output voltage at 1000 Hz, 5cm/sec.  –  5.5 mV
    Channel balance at 1 kHz   –  1.5 dB
    Channel separation at 1 kHz  –  22 dB
    Channel separation at 15 kHz  –  15 dB
    Frequency response  –  20-20.000 Hz + 3 / – 1 dB
    Tracking ability at 315Hz at recommended tracking force  –  70 µm
    Compliance, dynamic, lateral  –  20 µm/mN
    Stylus type  –  Elliptical
    Stylus tip radius  –  r/R 8/18 µm
    Tracking force range  –  1.6-2.0 g (16-20 mN)
    Tracking force, recommended  – 1.8 g (18 mN)
    Tracking angle  –  20°
    Internal impedance, DC resistance  –  1.3 kOhm
    Internal inductance  –  700 mH
    Recommended load resistance  –  47 kOhm
    Recommended load capacitance  –  150-300 pF
    Cartridge colour, body/stylus  –  Black/Red
    2M standard and 2M Verso cartridges weight  –  7.2 g
