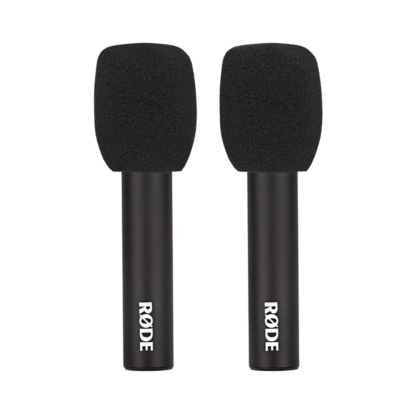

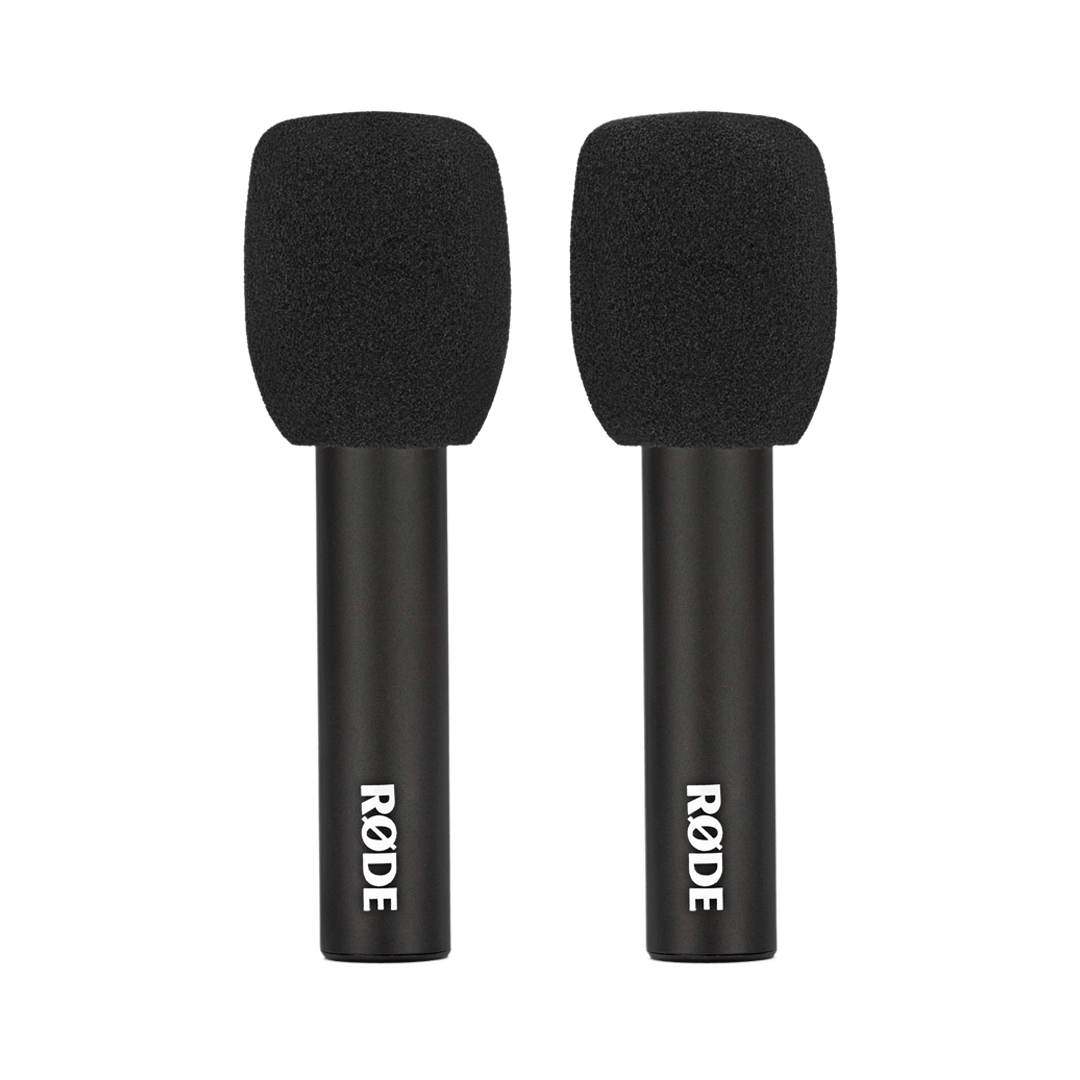

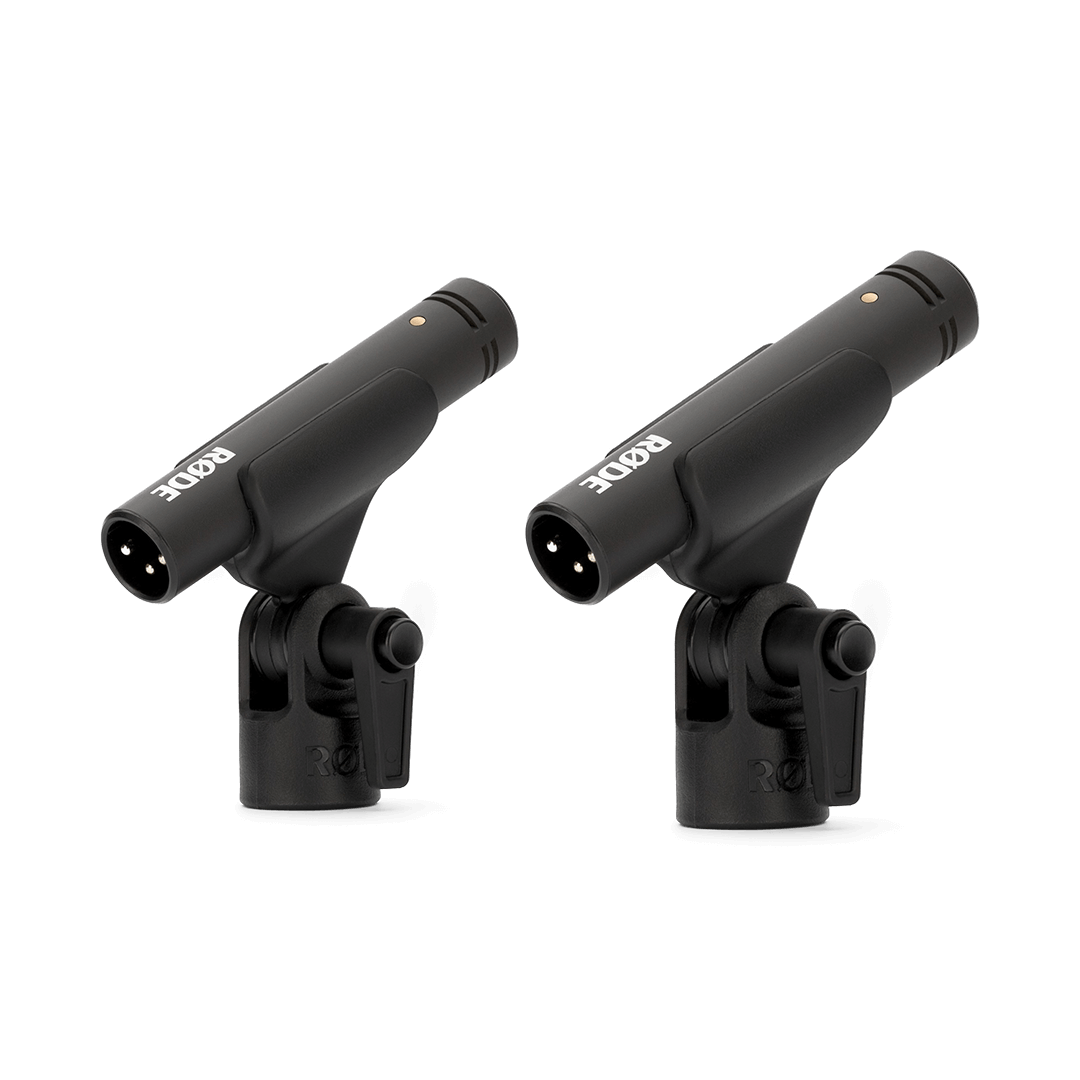

Matched Pair Small-diaphragm Condenser Microphone
The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small-diaphragm (‘pencil’) condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones and is supplied with WS5 windshields and RM5 stand mounts.
Key Features:
- Matched of pair small-diaphragm cardioid condenser microphones
- 1/2-inch gold-sputtered capsules
- Carefully selected pair with no more than 1dB sensitivity variation
- Very low noise and full frequency response
- Includes microphone clips and windshields
- 10-year warranty
Specifications
Acoustic & Electrical Specifications
Acoustic Principle
Pressure Gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Polar Pattern
Cardioid
Frequency Range
20Hz ~ 20kHz
Output Impedance
200Ω
Equivalent Noise
19 dBA SPL (as per IEC651)
Maximum Output Level
+13.5 dBu
Sensitivity
-34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz
Dynamic Range
121 dB SPL
Maximum SPL
140 dB SPL
Signal-to-Noise Ratio
75 dBA SPL (as per IEC651)
Power Requirements
P24 and P48
Output Connection
XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)
Mechanical Specifications
Weight (g)
80
Dimensions (mm)
100 (H) x 20 (W) x 20 (D)
Box Contains
1 x M5
2 x WS5

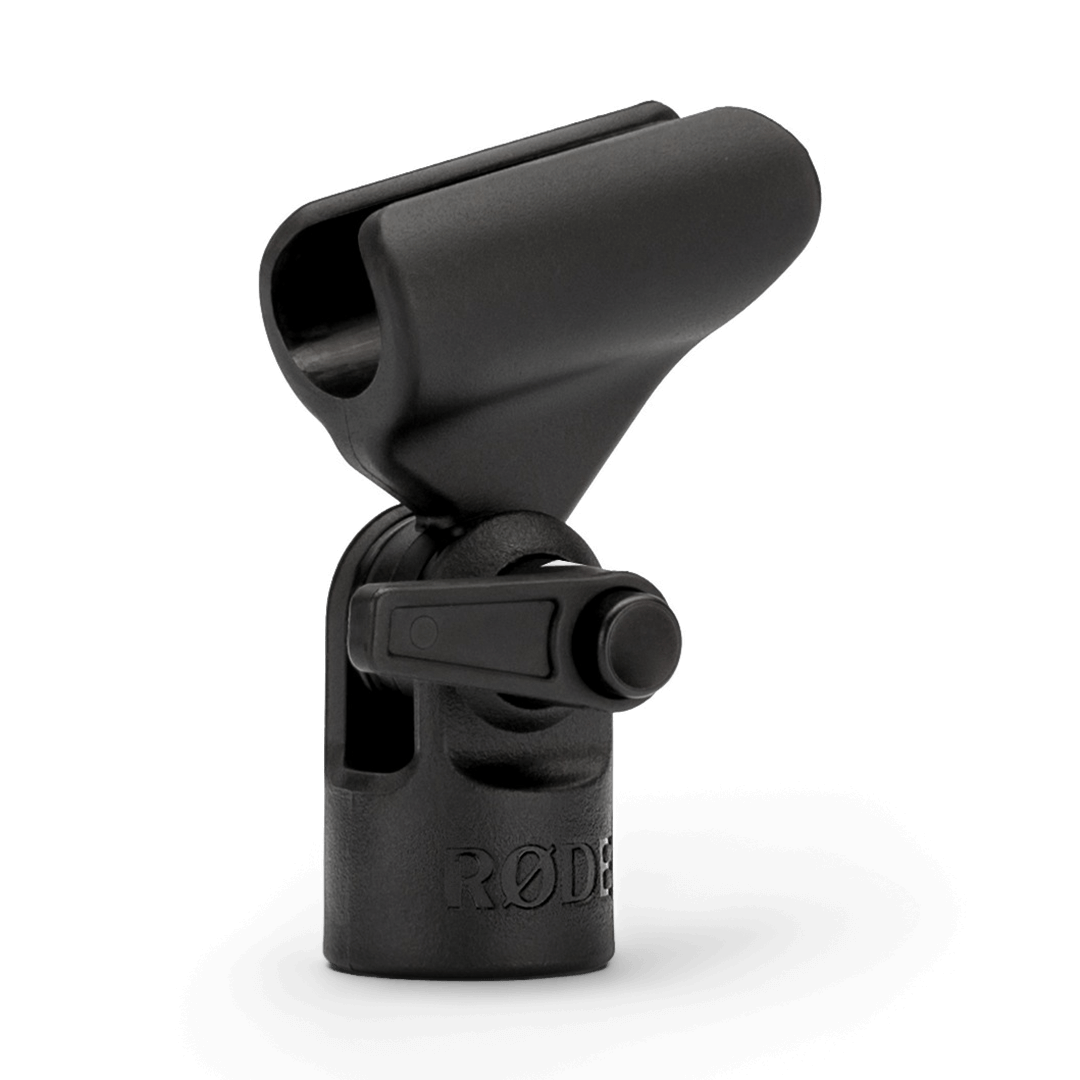

2 x RM5
