- Soveltuu myös kotikaraokeen ja television lisäkaiuttimiksi.
- Basso, Diskantti ja äänenvoimakkuus säätimet
- Sisääntulot: RCA (balansoimaton)+ terminaaliliitäntä (balansoitu)
25 W RMS, max SPL of 89 dB @ 1 m each
Full-range Hi-Fi audio
Built-in Class D amplifier with volume, bass and treble control
Quick and easy installation
Elegant design available in black and white

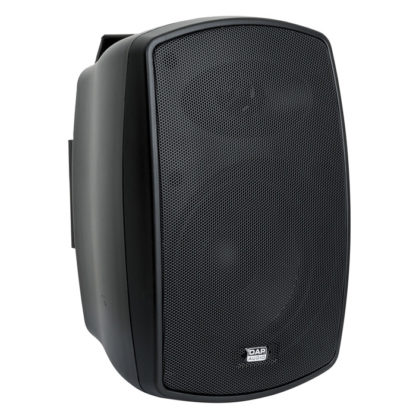

The DAP EVO 5A is a set of 2x 5″ active installation speakers for a full-range Hi-Fi sound of up to 89 dB @ 1 meter each. It fits nicely into any small indoor application due to its elegant design (available in black and white), strong construction and excellent sound quality. It is a perfect audio solution for many public places such as restaurants and retail stores.

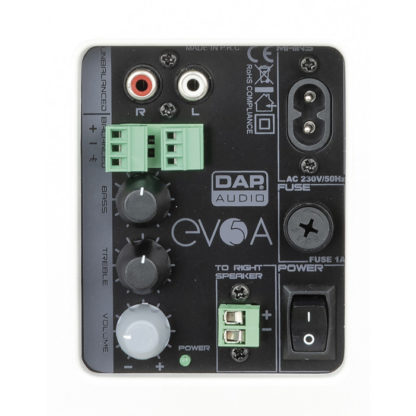

The EVO 5A has a built-in Class D amplifier with volume, bass and treble control. Installation can be done quickly and easily with a terminal and RCA audio input and 8-shaped Euro plug power connector. Besides, a mounting bracket is included for placement in either horizontal or vertical position.
| Stereo Inputs | 1 |
|---|---|
| Stereo Input Connector | Phoenix / RCA |
| RMS Power Input | 25 W |
| Peak Power Input | 50 W |
| THD Distortion Level | < 0.5% |
| Signal – Noise Ratio | > 90dB |
| Amp Technology | Class D |
| Speaker System | 2-Way |
| Speaker Sensitivity (1w/1m) | 89 dB |
| Max. SPL on 1m | 109 dB |
| Frequency Response Minimum | 80 Hz |
| Frequency Response Maximum | 20.000 Hz |
| Woofer Diameter | 5.25 “ |
| Woofer Voice Coil | 1 “ |
| Compression Driver Diameter | 1 “ |
| Compression Driver Voice Coil | 0.5 “ |
| Dispersion Angle Horizontal | 110 ° |
| Dispersion Angle Vertical | 90 ° |
| Power Supply | 240VAC 50Hz |
| Power Consumption | 55 W |
| Length (mm) | 163 mm |
| Height (mm) | 252 mm |
| Width (mm) | 163 mm |
| Weight | 5,9 kg |
| IP Rating | IP20(indoor use only) |
| Material | ABS |
| Housing | Plastic |
| Colour | White |
| Speaker Grill | Aluminium |
